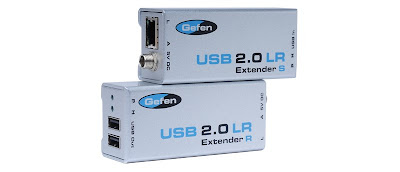

Gefen's USB 2.0 LR extends high-speed USB devices simply and reliably.
The compact USB 2.0 LR Sender/Receiver units install in minutes and fully support all USB versions (V1.1 and V2.0), at speeds of up to 480 mbps -- essential for high-performance applications such as digital imaging and interactive gaming.
How it works:
Gefen's USB 2.0 LR Sender unit connects to the host (for example, a computer). The Receiver unit is connected to USB device(s) at the desired extended location. A CAT5 cable is installed between the two modules. The 5V power supply is attached to the Receiver. Any USB device(s) plugged into the Receiver are now seen by the host.
•USB 2.0 Speed: 480 Mbps
•Link Connectors: RJ-45 Shielded
•USB Connectors: Transmitter: (1) USB type B
•USB Connectors: Receiver: (2) USB type A
•Dimensions of Transmitter: 1.5" W x 1.2" H x 3.3" D
•Dimensions of Receiver: 3.4" W x 1.1" H x 1.3" D
•Two 500 mA DC powered USB ports at Receiver
•Power Supply: External 5V DC @ 10W max. power consumption
•Operating Temperature: 0-70 C
•Unit Weight: Transmitter: 0.16 lbs.
•Unit Weight: Receiver: 0.44 lbs.
•Shipping Weight: 2 lbs.
